Ink Mixers

Ink Mixers

Project Info

Description

powerwise drum mixersWith the use of Peristaltic and Double Diaphragm pumps printers are faced with the need to “move” the ink within the container. Powerwise offers the small Powermix agitator in air and electric versions. This functional mixer is sold with or without a stainless steel hinged lid. It can be mounter to a 5 gallon (20 liter) ink system or a larger tank. A stainless steel propeller and needle flow valve allows flexible or constant mixing.

Powerwise also supplies Drum Mixer for the ink room or press side mixing. A folding propeller fits through the standard 2″ (50mm) bung hole. The mixer is fitted with an adjustable clamp for open drum or closed drum mounting. Static propellers if required.

Drum Mixer Model 7005

powerwise drum mixersThe Powerwise line of drum mixers are designed to provide trouble free and long life in many printing and ink room situations. You can use your Powerwise drum mixers if you have an ink room with or without an automated system. They are designed for quick set up and by using the adjustable clamp, they can be angled for the best possible uniform mixing of your liquids. Use of a variable speed air motor allows control of how much you wish your ink to be mixed. A collapsible propeller, two sizes available, allows you to drop the mixer through a standard 2” (50mm) bung hole.

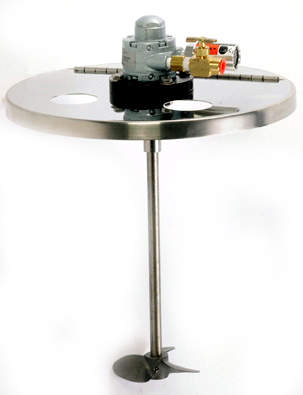

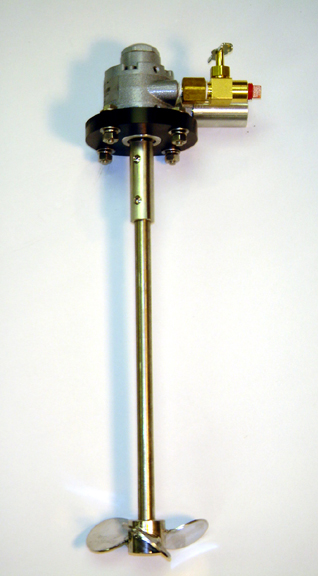

Small Air Powered Mixer Model 7003-2

powersie 7003 ink mixer
Air Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of 310 mm (12″)  for use in the standard ink pails
Suitable for hazardous areas. Stands in a 5 gallon/25 Litre container
Standard Flexographic and Gravure ink applications
Lubricated air pressure at 25 – 100 PSI required

ATEX approved (Link)
More Pictures of this mixer
(One)
(Two)

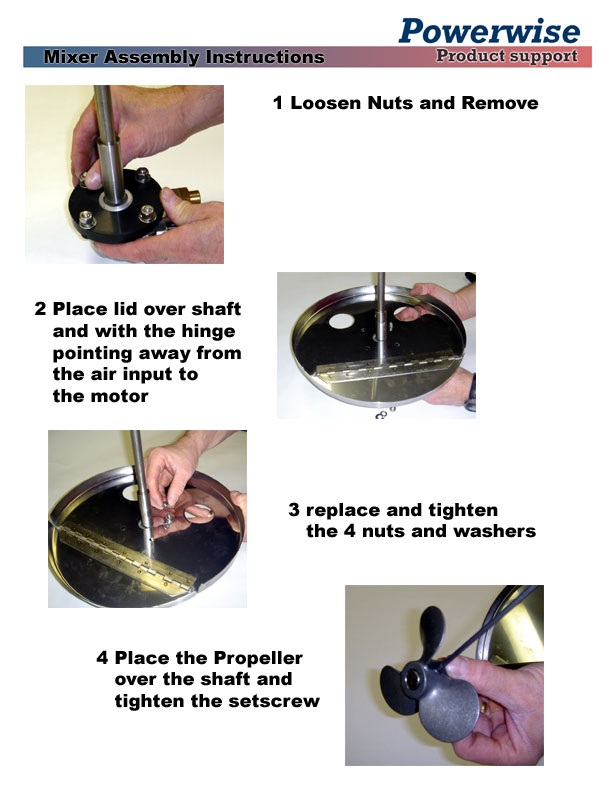

Mixer Assembly Instructions (Link)
Mixer Assembly Video (Link)
CE Declaration (Link)

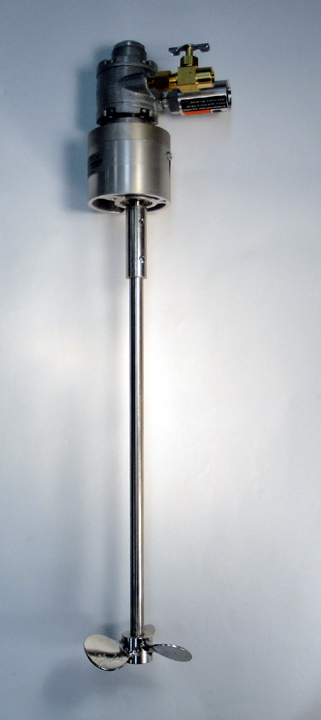

Geared Air Powered Mixer Model 7003G

Air Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of 12.5″ (317mm)  for use in the standard ink pails
Suitable for hazardous areas. Stands in a 5 gallon/25 Litre container
Standard Flexographic and Gravure ink applications
Lubricated air pressure at 25 – 100 PSI required

The Gear reducer allows the operator to increase the speed and HP and maintain
a low propeller speed. This hi-torque unit is therefore is ideal for more viscous fluids

ATEX approved (Link)

More Pictures of this mixer
(One)

CE Declaration (Link)

Geared Air Powered Mixer Model 7003G-O

powerwise ink mixer 7003G-O
Air Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of  16″ (406mm) for use in deeper pails
Suitable for hazardous areas.
Standard Flexographic and Gravure ink applications
Lubricated air pressure at 25 – 100 PSI required

The Gear reducer allows the operator to increase the speed and HP and maintain
a low propeller speed. This hi-torque unit is therefore is ideal for more viscous fluids

ATEX approved (Link)

More Pictures of this mixer
(One)

CE Declaration (Link)

Powermix! Model 7003

powerwise drum mixersThe best mixer for the price on the market to date! The mixer is powered by a variable speed 0.25 hp (0.18 Kw) Air motor. The shaft and propeller are stainless steel and can be attached to the lid of your ink container by a mounting ring. The Powermix agitator gently mixes the ink within the container and maintains a uniform consistency. Each mixer comes with a needle flow valve for air control. Use this mixer where additional agitation is needed when using peristaltic or diaphragm pumps. You can also buy this mixer attached to a stainless steel hinged lid for 5 gallon/20 liter ink pails.

55 Gallon Air Driven Side Clamp Mixer with 4

powerwise drum mixer 7005
Air Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of 838 mm (33″)  for use in 55 Gallon Drums
Suitable for hazardous areas. Mounts to the lip of a 55 gallon/205 Litre container
Standard Flexographic and Gravure ink applications
Lubricated air pressure at 25 – 100 PSI required

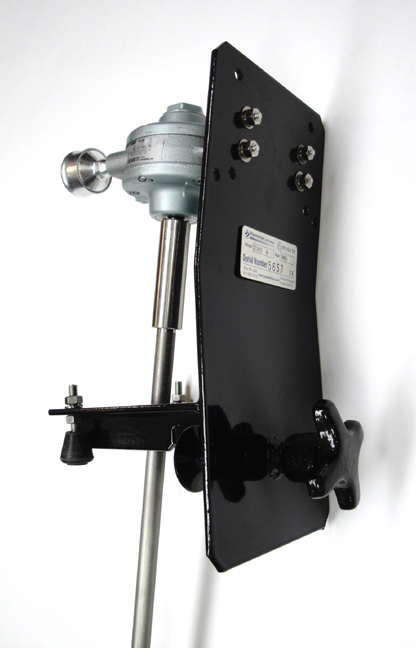

This unit is designed to clamp to the lip of a standard drum.
Picture (Link)

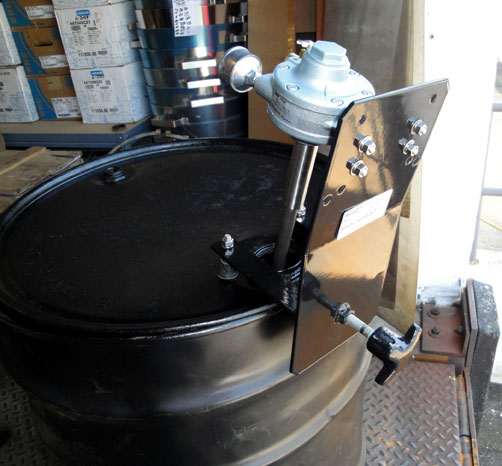

The mounting bracket clamps to the side of the drum. (Mounting Picture).
Click here for a video showing you how to install the mixer in a 55 Gallon Drum (Link)

The folding propeller allows you to insert the mixer through the hole in your drum
(Folded Propeller Picture)
Once the mixer is run the propeller spins out undercentrifugal force
(Unfolded Propeller Picture)

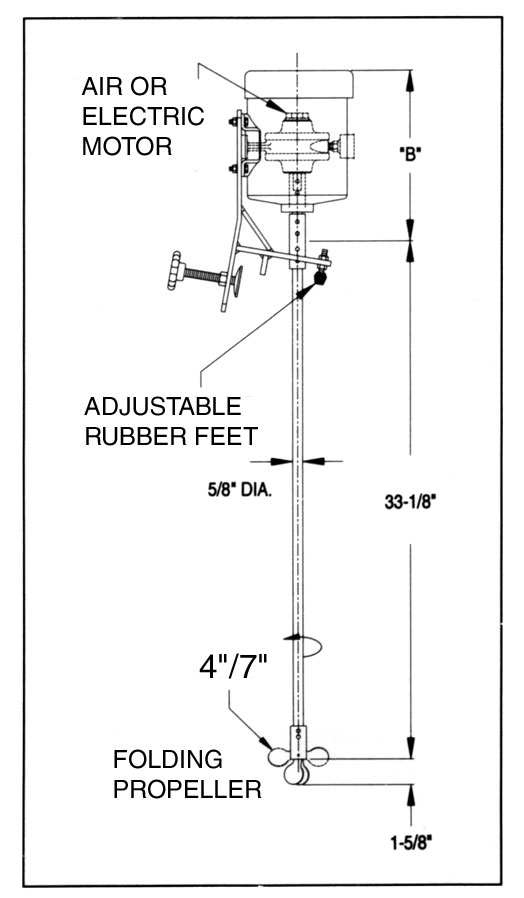

For dimensions (click here)

CE Declaration (Link)

55 Gallon Air Driven Side Clamp Mixer with 7

powerwise drum mixer 7005-7
Air Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of 838 mm (33″)  for use in 55 Gallon Drums
Suitable for hazardous areas. Mounts to the lip of a 55 gallon/205 Litre container
Standard Flexographic and Gravure ink applications
Lubricated air pressure at 25 – 100 PSI required

This unit is designed to clamp to the lip of a standard drum.
Picture (Link)

The mounting bracket clamps to the side of the drum. (Mounting Picture).
Click here for a video showing you how to install the mixer in a 55 Gallon Drum (Link)

The folding propeller allows you to insert the mixer through the hole in your drum
(Folded Propeller Picture)
Once the mixer is run the propeller spins out undercentrifugal force
(Unfolded Propeller Picture)

For dimensions (click here)

CE Declaration (Link)

55 Gallon Top Mount Variable Speed Electric Driven Mixer with 4

Variable Speed Electric Motor Driven Mixer
This specification is for use Worldwide
It has an immersed length of 660 mm (26″)  for use in 55 Gallon Drums
Suitable for non-hazardous areas. Mounts to the Powerwise Lid 3003-24.5
on a 55 gallon/205 Litre container
Standard Flexographic and Gravure ink applications
110/220/1/50/60 Voltage Required for Inverter

This unit is designed to fit this lid
Picture (Link)

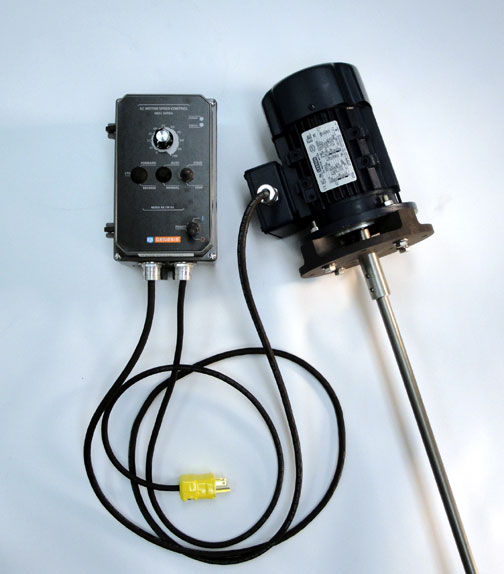

The Inverter allows you complete control over the speed of the mixer
There is a speed knob on the front panel and a start stop switch
Picture (Link)
Video (Link)
Supplied with 6ft of cable from the plug to the inverter and 6ft from Inverter to motor
There is a Nema plug fitted so this unit is ready to go.

Custom Length

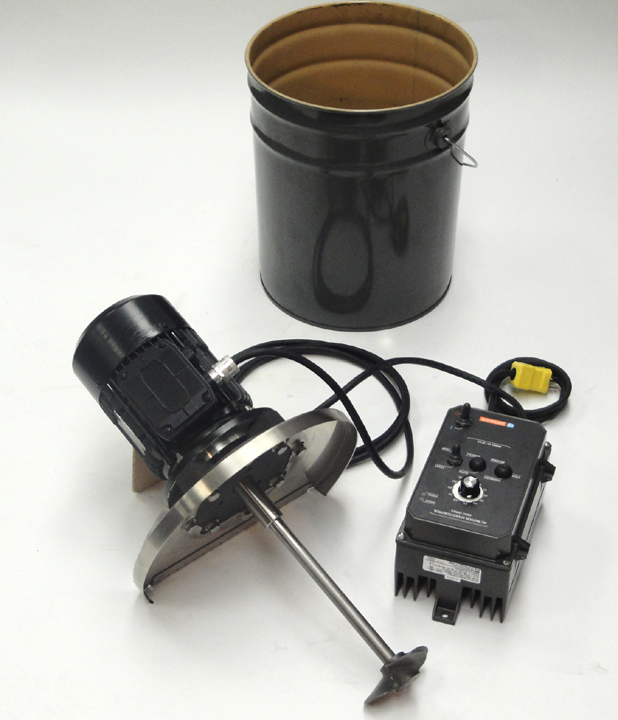

The standard unit is sized for a 55 gallon drum however the mixer can be mounted to a 5 gallon lid with a short shaft for standard size containers. (Link)
